SCHNEİDER ELECTRİC G20B3A160 GOPACT MCCB 200B 3P3D 160A 25KA AYAR SAHALI KOMPAK ŞALTER
Ürün Kodu : G20B3A160- Ürün Özellikleri
- Ödeme Seçenekleri
- İade ve Teslimat
- Yorumlar (0)
-
SCHNEIDER ELECTRIC GOPACT G20B3A160 200B 3P3D 25kA AC 160A ŞALTER TMD AYAR

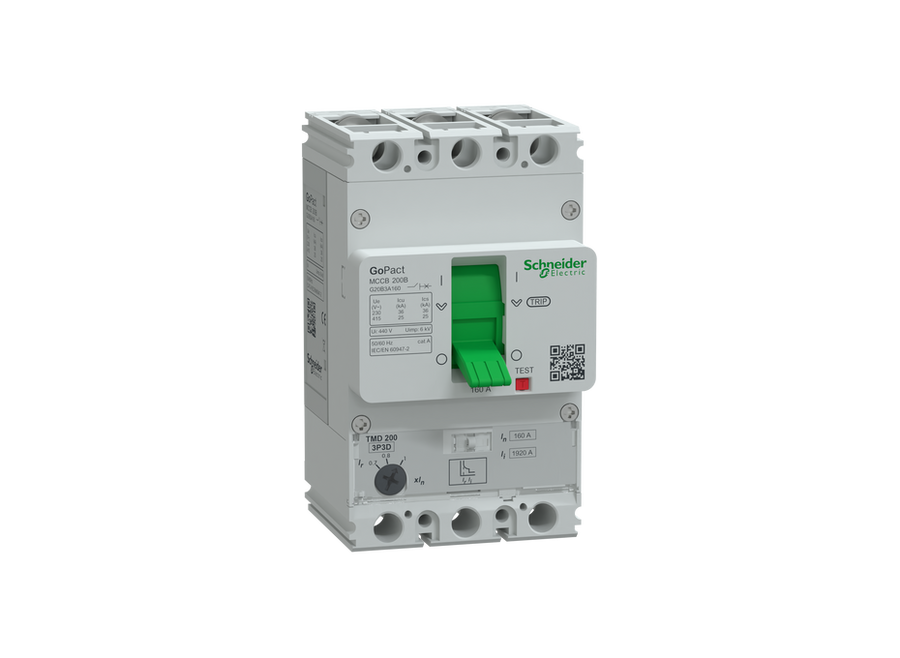

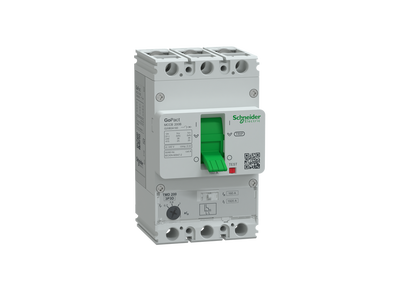

GoPact G20B3A160, 3 kutuplu (3P3D), sabit montajlı ve termik-manyetik açma üniteli (TMD) bir kompakt şalterdir.
160A nominal akım ile çalışır ve termal koruma ayarı aralığı 0,7xIn–1xIn (112A–160A) arasında kolayca ayarlanabilir.
Kısa devre manyetik koruma noktası ise 12xIn (1920A) seviyesindedir.
415V AC 50/60Hz çalışma gerilimiyle hem ticari hem endüstriyel projelerde güvenilir enerji dağıtımı sunar.
Cihazın kısa devre kesme kapasitesi (Icu) 25kA (380/415V AC) olup, IEC 60947-1 ve IEC 60947-2 standartlarına tamamen uygundur.
Kompakt yapısıyla pano içinde az yer kaplar; 75x130x60 mm boyutlarında ve 0,9 kg ağırlığındadır. Vidalı terminalleri ile kolay bağlantı sağlar.
Mekanik ömrü 3.000 çevrim, elektriksel ömrü ise 8.000 çevrime kadar ulaşır.
Standart IP20 koruma sayesinde -20°C ila +55°C sıcaklık aralığında güvenli performans verir, 2.000 metreye kadar yükseklik farkı olmadan kullanılabilir.
Main Range Of Product Gopact Mccb Product Or Component Type Circuit Breaker Product Name Gopact Mccb 200 Device Application Distribution Poles Description 3P Protected Poles Description 3D [In] Rated Current 160 A At 40 °C [Ue] Rated Operational Voltage 415 V Ac 50/60 Hz Conforming To En/Iec 60947-2 Suitability For İsolation Yes Conforming To En/Iec 60947-2 Utilisation Category Category A [Icu] Rated Ultimate Short-Circuit Breaking Capacity 25 Ka Icu At 380/415 V Ac 50/60 Hz Conforming To En/Iec 60947-2 36 Ka Icu At 220/230 V Ac 50/60 Hz Conforming To En/Iec 60947-2 Performance Level B 25 Ka 380/415 V Ac Trip Unit Name Tm-D Trip Unit Technology Thermal-Magnetic Trip Unit Protection Functions Lı Control Type Toggle Circuit Breaker Mounting Mode Fixed Complementary [Ui] Rated İnsulation Voltage 440 V Ac Conforming To En/Iec 60947-2 [Uimp] Rated İmpulse Withstand Voltage 6 Kv Conforming To En/Iec 60947-2 [Ics] Rated Service Short-Circuit Breaking Capacity 25 Ka At 380/415 V Ac 50/60 Hz Conforming To En/Iec 60947-2 36 Ka At 220/230 V Ac 50/60 Hz Conforming To En/Iec 60947-2 Mechanical Durability 30000 Cycles Electrical Durability 8000 Cycles At 415 V In Power Dissipation Per Pole 16 W Mounting Support Backplate Mounting Position Horizontal And Vertical Flat On The Back Upside Connection Front Downside Connection Front Connection Terminals Screw Terminals Connection Pitch 25 Mm Protection Type L : For Overload Protection (Thermal) I : For Short-Circuit Protection (Magnetic) Trip Unit Rating 160 A At 40 °C Long-Time Pick-Up Adjustment Type Ir (Thermal Protection) Adjustable [Ir] Long-Time Protection Pick-Up Adjustment Range 0.7...1 X In Long-Time Protection Delay Adjustment Type Tr Fixed Instantaneous Protection Pick-Up Adjustment Type Ii Fixed [Ii] İnstantaneous Protection Pick-Up Adjustment Range 12 X In Width (W) 75 Mm Height (H) 130 Mm Depth (D) 60 Mm Net Weight 0.9 Kg Colour Grey (Ral 7035) Environment Standards En/Iec 60947-1 En/Iec 60947-2 En/Iec 60947-2 Annex H Overvoltage Category Iıı Pollution Degree 3 Conforming To Iec 60664-1 Ip Degree Of Protection Ip20 Conforming To Iec 60529 Ambient Air Temperature For Operation -20…55 °C Ambient Air Temperature For Storage -35…85 °C Operating Altitude 0...2000 M Without Derating 2000...5000 M With Derating Packing Units Unit Type Of Package 1 Pce Number Of Units İn Package 1 1 Package 1 Height 13.6 Cm Package 1 Width 8.5 Cm Package 1 Length 13.9 Cm Package 1 Weight 0.995 Kg
-
11.086,80 TL3.991,25 TL
